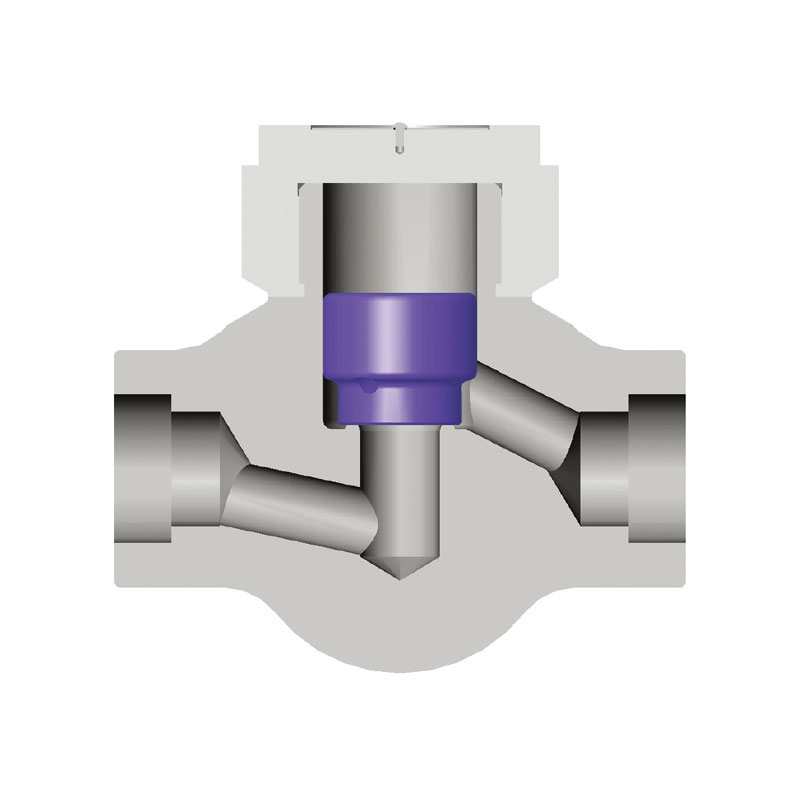

Check Valve - SW

제품스펙안내
구분 내용
PRODUCT NAME FORGED VALVE
MODEL NAME Check Valve - SW
VALVE SIZE 1/2" ~ 2"
APPLICABLE RATING ASME 900 ~ 4500
TEMPERATURE Up to 500°C
CODE & STANDARD API, BS, ASME, ASTM
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

CONSTRUCTIONS

  • End Connection : Socket-welded or Flanged Type
  • WC (=Welded Cover) Type
  • Full Bore / Reduce Bore

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
COVER ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
SEAT ASTM A105-H,F
DISC ASTM A276-410

Model NO : Class 900

STANDARD MATERIALS안내
SIZE L H WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 216 114 70 4.9 3.9
3/4″ 229 114 70 5.1 3.9
1″ 254 130 78 9.5 5.1
1 1/4″ 279 150 107 12.6 8.5
1 1/2″ 305 150 107 15.6 8.1
2″ 368 190 129 20.1 14.6

Model NO : Class 1500

STANDARD MATERIALS안내
SIZE L H WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 216 114 70 4.9 3.9
3/4″ 229 114 70 5.1 3.9
1″ 254 130 78 9.5 5.1
1 1/4″ 279 150 107 12.6 8.5
1 1/2″ 305 150 107 15.6 8.1
2″ 368 190 129 20.1 14.6

Model NO : Class 2500

STANDARD MATERIALS안내
SIZE L H WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 114 70 - 3.9
3/4″ - 130 78 - 5.1
1″ - 150 107 - 8.5
1 1/4″ - 190 129 - 14.6
1 1/2″ - 190 129 - 14.6
2″ - 235 146 - 19.1

Model NO : Class 4500

STANDARD MATERIALS안내
SIZE L H WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 130 78 - 5.1
3/4″ - 130 78 - 5.1
1″ - 150 107 - 8.5
1 1/4″ - 190 129 - 14.6
1 1/2″ - 190 129 - 14.6
2″ - 235 146 - 19.1
