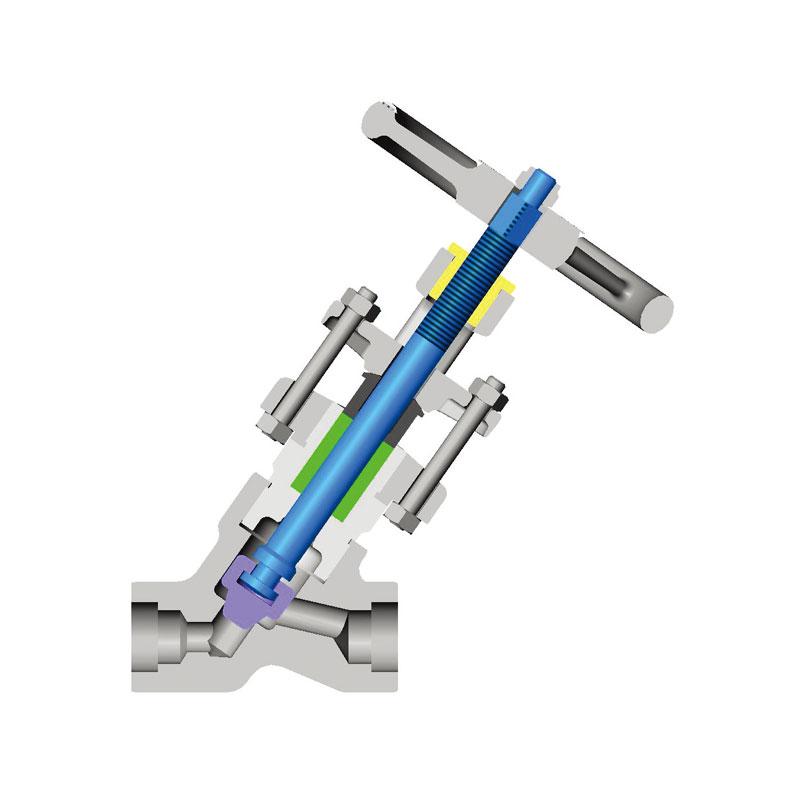

Y-Globe Valve - SWB

제품스펙안내
구분 내용
PRODUCT NAME FORGED VALVE
MODEL NAME Y-Globe Valve - SWB
VALVE SIZE 1/2" ~ 2"
APPLICABLE RATING ASME 900 ~ 4500
TEMPERATURE Up to 500°C
CODE & STANDARD API, BS, ASME, ASTM
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

CONSTRUCTIONS

  • End Connection : Socket-welded or Flanged Type
  • WB (=Welded Bonnet) Type
  • Full Bore / Reduce Bore
  • Rising Stem / Non-Rising Hand Wheel
  • Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
BONNET ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
SEAT ASTM A105-H,F
DISC ASTM A276-410
STEM ASTM A276-410
GASKET Graphite
GLAND PACKING Graphite
GLAND ASTM A276-410

Model NO : Class 900

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 256 114 237 150 6.7 5.7
3/4″ 269 114 237 150 6.6 5.6
1″ 294 130 273 180 8.7 7.7
1 1/4″ 345 150 317 200 12.4 11.4
1 1/2″ 345 150 317 200 12.4 11.4
2″ 368 190 362 250 17.4 15.4

Model NO : Class 1500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 256 114 237 150 6.7 5.7
3/4″ 269 114 237 150 6.6 5.6
1″ 294 130 273 180 8.7 7.7
1 1/4″ 345 150 317 200 12.4 11.4
1 1/2″ 345 150 317 200 12.4 11.4
2″ 368 190 362 250 17.4 15.4

Model NO : Class 2500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 114 237 150 - 8.0
3/4″ - 130 273 180 - 8.2
1″ - 150 317 200 - 12.2
1 1/4″ - 190 362 250 - 15.9
1 1/2″ - 190 362 250 - 15.7
2″ - 220 425 250 - 26.3

Model NO : Class 4500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 130 273 180 - 8.2
3/4″ - 130 273 180 - 8.2
1″ - 150 317 200 - 12.2
1 1/4″ - 220 425 250 - 26.3
1 1/2″ - 220 425 250 - 26.3
2″ - 305 613 600 - 46.0
