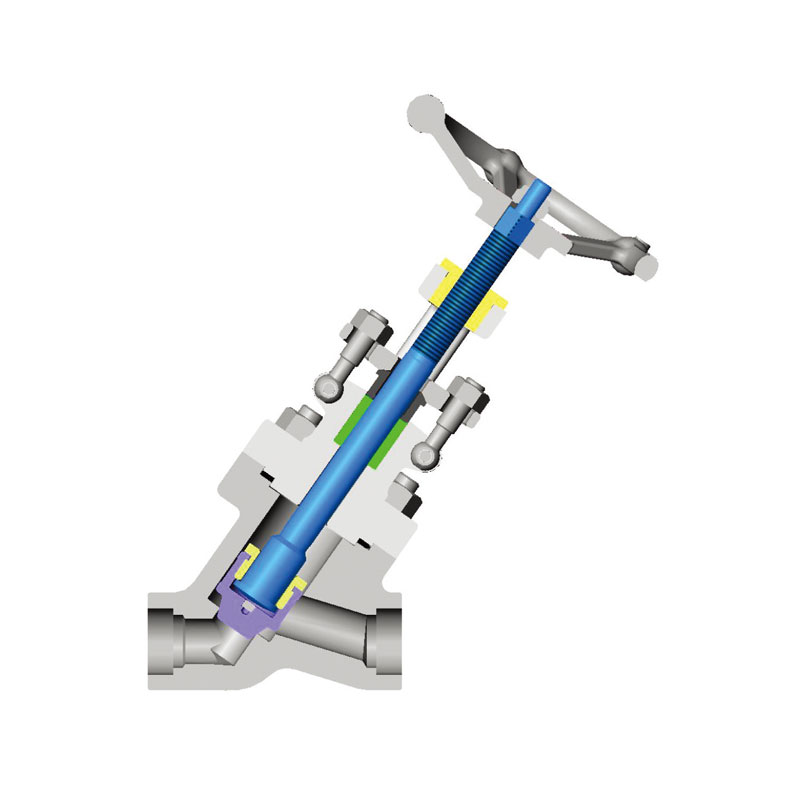

Y-Globe Valve - BB

제품스펙안내
구분 내용
PRODUCT NAME FORGED VALVE
MODEL NAME Y-Globe Valve - BB
VALVE SIZE 1/2" ~ 2"
APPLICABLE RATING ASME 150 ~ 600
TEMPERATURE Up to 500°C
CODE & STANDARD ASME, ASTM
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

CONSTRUCTIONS

  • End Connection : Socket-welded or Flanged Type
  • OS & Y, BB (=Bolted Bonnet) Type
  • Full Bore
  • Rising Stem / Non-Rising Hand Wheel
  • Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
BONNET ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
SEAT ASME(S)A105-H,F
DISC ASME(S)A479-410
STEM ASME(S)A479-410
GASKET Graphite
GLAND PACKING Graphite
GLAND ASME(S)A479-316

Model NO : Class 150

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 204 114 250 125 6.1 4.6
3/4″ 216 114 250 125 6.6 4.6
1″ 229 130 295 160 9.7 7.6
1 1/4″ 292 190 368 180 16.4 13.7
1 1/2″ 292 190 368 180 16.2 13.7
2″ 302 190 368 180 16.9 13.7

Model NO : Class 300

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 204 114 250 125 6.1 4.6
3/4″ 216 114 250 125 6.6 4.6
1″ 229 130 295 160 9.7 7.6
1 1/4″ 292 190 368 180 16.4 13.7
1 1/2″ 292 190 368 180 16.2 13.7
2″ 302 190 368 180 16.9 13.7

Model NO : Class 600

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 204 114 250 125 7.4 4.6
3/4″ 216 114 250 125 7.9 4.6
1″ 229 130 295 160 10.3 7.6
1 1/4″ 292 190 368 180 18.2 13.7
1 1/2″ 292 190 368 180 18.0 13.7
2″ 302 190 368 180 16.5 13.7
