Details of products

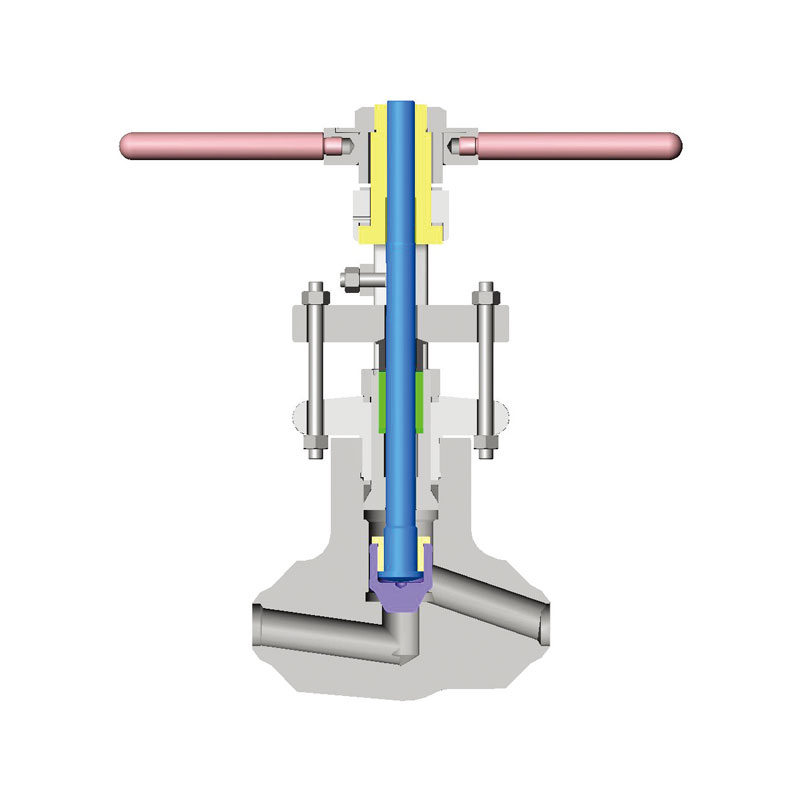

CONSTRUCTIONS
- End Connection : Butt-Welded Type
- PSB (=Pressure-Seal Bonnet) Type
- Full Bore /Reduce Bore
- Rising Stem / Non-Rising Hand Wheel
- Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)
STANDARD MATERIALS
| PART NAME | MATERIALS |
|---|---|
| BODY | ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321 |
| BONNET | ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321 |
| SEAT | ASTM A276-410-H,F |
| DISC | ASTM A276-410 |
| STEM | ASTM A276-410 |
| GASKET | Graphite |
| GLAND PACKING | Graphite |
| GLAND | ASTM A276-410 |
Model NO : Class 2500, 4500
| SIZE | L | H | W | WT(kg) | ||
|---|---|---|---|---|---|---|
| FLG | S.W | FLG | S.W | |||
| RF | RF | |||||
| 2 1/2″ | - | 350 | 550 | 600 | - | 52.0 |
