Gate Valve - SWB

제품스펙안내
구분 내용
PRODUCT NAME FORGED VALVE
MODEL NAME Gate Valve - SWB
VALVE SIZE 1/2" ~ 2"
APPLICABLE RATING ASME 900 ~ 4500
TEMPERATURE Up to 500°C
CODE & STANDARD API, BS, ASME, ASTM
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

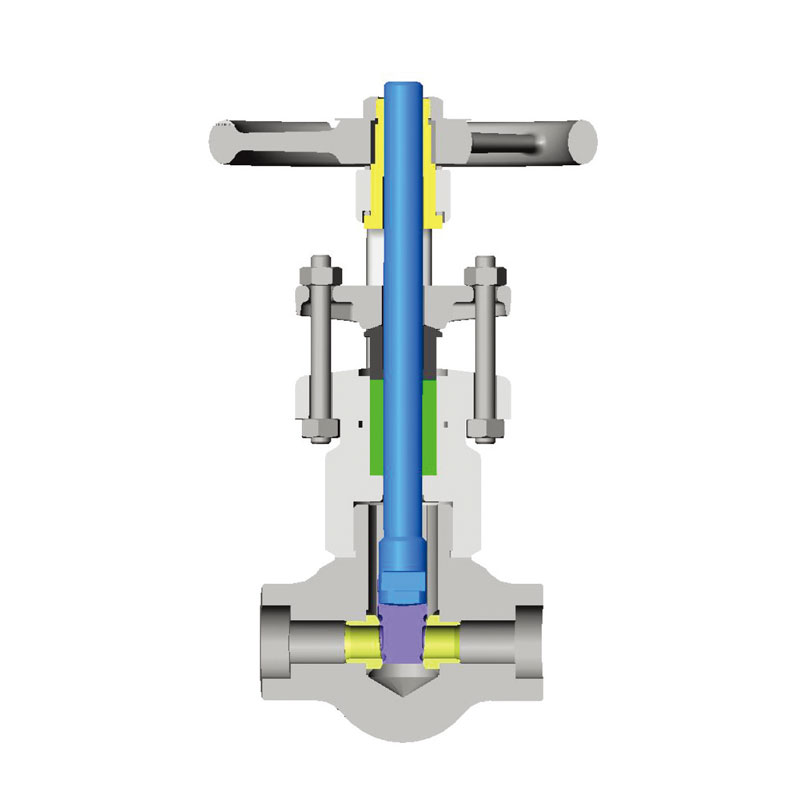

CONSTRUCTIONS

  • End Connection : Socket-welded or Flanged Type
  • WB (=Welded Bonnet) Type
  • Full Bore / Reduce Bore
  • Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
BONNET ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
SEAT ASTM A276-410-H,F
WEDGE ASTM A217-CA15
STEM ASTM A276-410
GLAND PACKING Graphite
GLAND ASTM A276-410

Model NO : Class 900

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 216 114 230 150 6.2 5.6
3/4″ 229 114 257 150 7.2 6.2
1″ 254 130 278 180 9.7 8.7
1 1/4″ 279 150 335 200 15.7 13.7
1 1/2″ 305 150 335 200 15.7 13.7
2″ 368 190 380 250 27.1 25.1

Model NO : Class 1500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 216 114 230 150 6.2 5.6
3/4″ 229 114 257 150 7.2 6.2
1″ 254 130 278 180 9.7 8.7
1 1/4″ 279 150 335 200 15.7 13.7
1 1/2″ 305 150 335 200 15.7 13.7
2″ 368 190 380 250 27.1 25.1

Model NO : Class 2500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 114 260 150 - 6.3
3/4″ - 130 277 180 - 8.9
1″ - 150 326 200 - 14.1
1 1/4″ - 190 370 250 - 25.5
1 1/2″ - 190 370 250 - 25.5
2″ - 260 479 250 - 27.3

Model NO : Class 4500

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 130 277 180 - 8.9
3/4″ - 130 277 180 - 8.9
1″ - 150 326 200 - 14.1
1 1/4″ - 190 479 250 - 27.3
1 1/2″ - 190 479 250 - 27.3
