Details of products

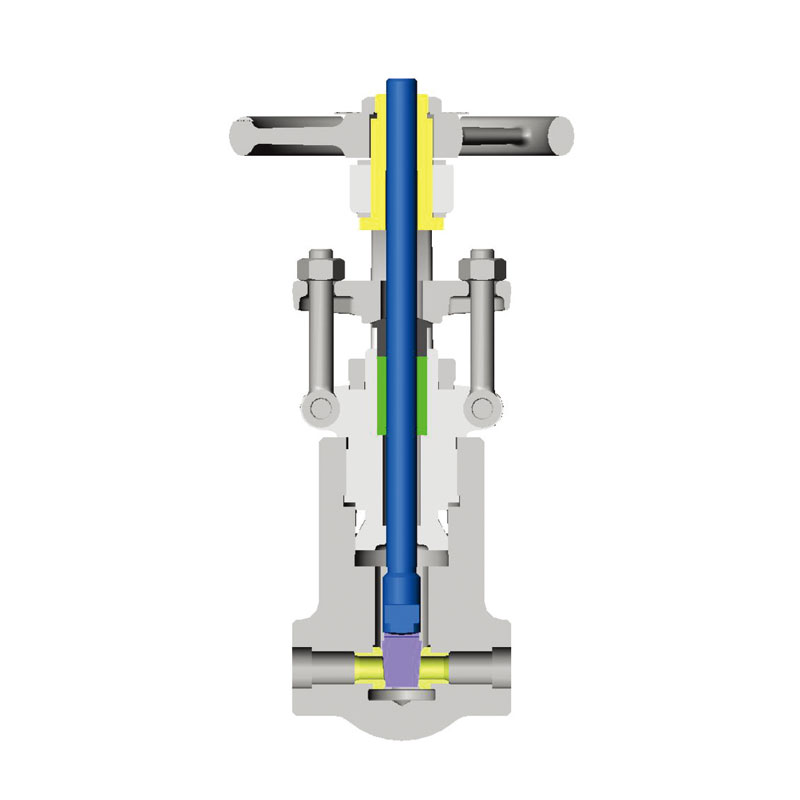

CONSTRUCTIONS
- End Connection : Socket-welded or Flanged Type
- PSB (=Pressure-Seal Bonnet) Type
- Full Bore / Reduce Bore
- Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)
STANDARD MATERIALS
| PART NAME | MATERIALS |
|---|---|
| BODY | ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321 |
| BONNET | ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321 |
| SEAT | ASTM A276-410-H,F |
| WEDGE | ASTM A217-CA15 |
| STEM | ASTM A276-410 |
| GASKET | Graphite |
| HANDWHEEL | ASTM A47 |
| GLAND PACKING | Graphite |
| GLAND | ASTM A276-410 |
Model NO : Class 1500
| SIZE | L | H | W | WT(kg) | ||
|---|---|---|---|---|---|---|
| FLG | S.W | FLG | S.W | |||
| RF | RF | |||||
| 1/2″ | 216 | 114 | 306 | 180 | 11.0 | 10.3 |
| 3/4″ | 229 | 127 | 325 | 180 | 12.0 | 10.3 |
| 1″ | 254 | 172 | 425 | 200 | 16.5 | 13.5 |
| 1 1/4″ | 279 | 203 | 496 | 200 | 34.0 | 28.6 |
| 1 1/2″ | 305 | 203 | 496 | 200 | 38.5 | 28.6 |
| 2″ | - | 203 | 553 | 250 | - | 37.0 |
Model NO : Class 2500
| SIZE | L | H | W | WT(kg) | ||
|---|---|---|---|---|---|---|
| FLG | S.W | FLG | S.W | |||
| RF | RF | |||||
| 1/2″ | - | 114 | 306 | 180 | - | 10.3 |
| 3/4″ | - | 127 | 325 | 180 | - | 10.3 |
| 1″ | - | 172 | 425 | 200 | - | 13.5 |
| 1 1/4″ | - | 203 | 496 | 200 | - | 28.6 |
| 1 1/2″ | - | 203 | 496 | 200 | - | 28.6 |
| 2″ | - | 203 | 553 | 250 | - | 37 |
