PRODUCT NAME FORGED VALVE
MODEL NAME Gate Valve - BB
VALVE SIZE 1/2" ~ 2"
APPLICABLE RATING ASME 150 ~ 800
TEMPERATURE Up to 500°C
CODE & STANDARD API, BS, ASME, ASTM
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

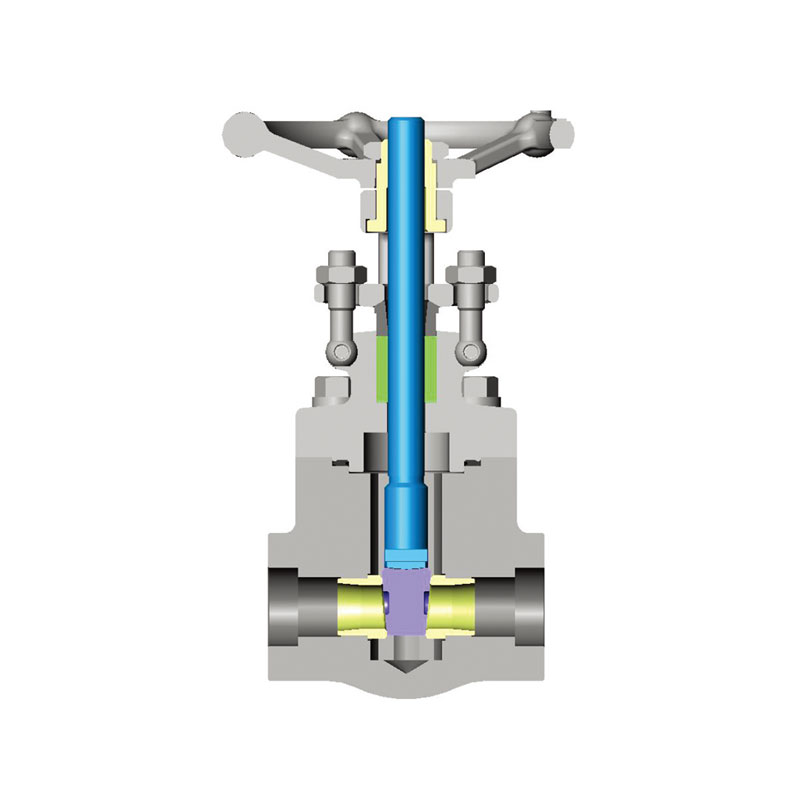

CONSTRUCTIONS

  • End Connection : Socket-welded or Flanged Type
  • OS & Y, BB (=Bolted Bonnet) Type
  • Full Bore / Reduce Bore
  • Rising Stem / Non-Rising Hand Wheel
  • Manual or Motor Operated (Pneumatic, Electric, or Hydraulic)

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
BONNET ASTM A105, A182-F304(L)/F316(L)/F22/F5/F9/F317/F347/F321
SEAT ASTM A276-410-H,F
WEDGE ASTM A217-CA15
STEM ASTM A276-410
GASKET Graphite
HANDWHEEL ASTM A197
GLAND PACKING Graphite
GLAND 304L SS

Model NO : Class 150

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 108 79 155 100 2.4 1.9
3/4″ 117 92 155 100 2.9 2.2
1″ 127 111 193 125 5.1 4.1
1 1/4″ - 120 248 160 - 7.3
1 1/2″ 165 120 248 160 8.9 7.2
2″ 178 140 286 180 13.3 10.8

Model NO : Class 300

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 140 79 155 100 2.6 1.9
3/4″ 152 92 155 100 3.3 2.2
1″ 165 111 193 125 5.5 4.1
1 1/4″ 178 120 248 160 9.2 7.3
1 1/2″ 190 120 248 160 9.9 7.2
2″ 216 140 286 180 13.9 10.8

Model NO : Class 600

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ 165 79 155 100 2.7 1.9
3/4″ 190 92 155 100 3.6 2.2
1″ 216 111 193 125 5.8 4.1
1 1/4″ 229 120 248 160 9.8 7.3
1 1/2″ 241 120 248 160 10.5 7.2
2″ 292 140 286 180 15.2 10.8

Model NO : Class 800

STANDARD MATERIALS안내
SIZE L H W WT(kg)
FLG S.W FLG S.W
RF RF
1/2″ - 79 155 100 - 1.9
3/4″ - 92 155 100 - 2.2
1″ - 111 193 125 - 4.1
1 1/4″ - 120 248 160 - 7.3
1 1/2″ - 120 248 160 - 7.2
2″ - 140 286 180 - 10.8
