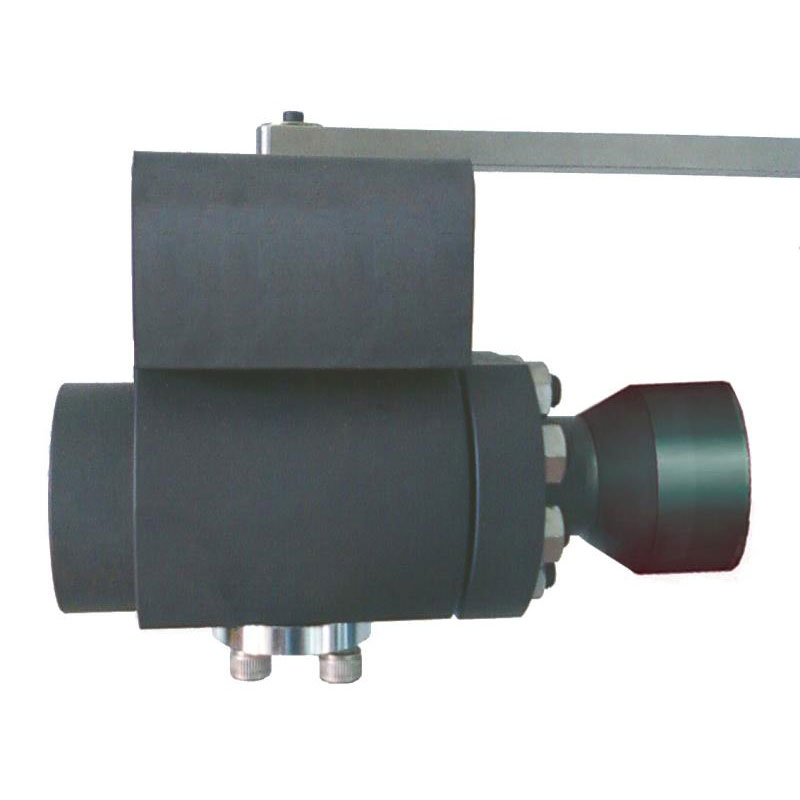

Details of products

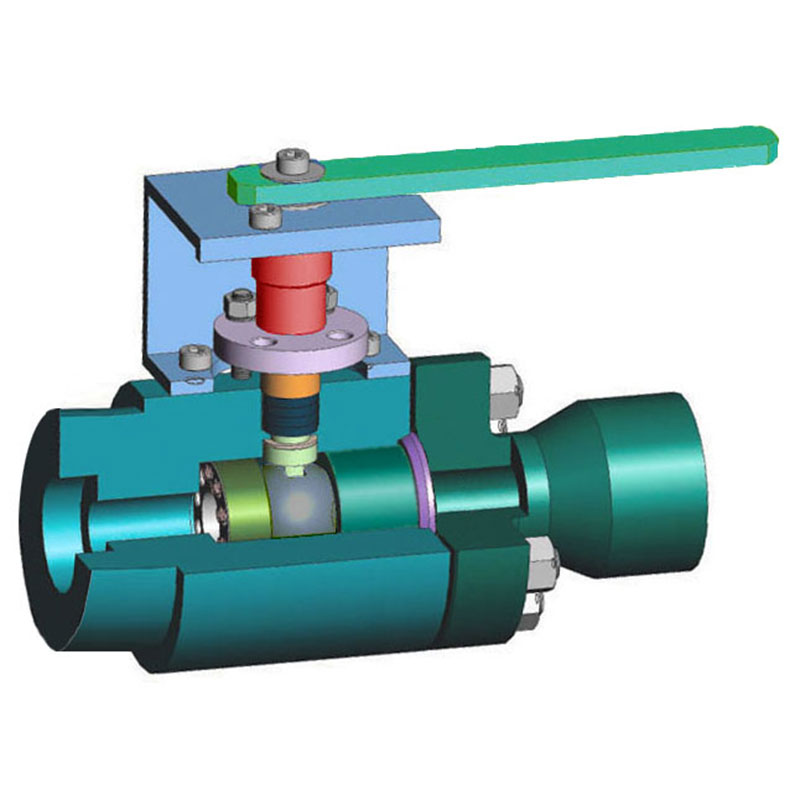

CONSTRUCTIONS
- Two-piece Body
- End Connection : Socket-welded Type
- Std. Multi-Coil Spring for Live Loading
- Blow-out Proof Stem / Precise Metal Gasket
- PVD Coating on the Ball
- Reduce Bore / Full Bore
- Bubble -tight Std.
- Fire Safety Construction (API-607)
STANDARD MATERIALS
| PART NAME | MATERIALS |
|---|---|
| BODY | A105 or A182-F91 / F22 /F11 / F316 / S.S |
| SEAT CONNECTOR | A105 or A182-F91 /F22/ F11 /F316 S.S + P.V.D |
| BALL | 316SS, 410SS, INCONEL + P.V.D |
| SEAT | A105 or A182-F91 / F22 / F11 / F316 S.S, INCONEL + P.V.D |
| METAL GASKET | A182-F316L |
| STEM | 316SS, 630SS, Alloy Steel + P.V.D |
| SPRING | INCONEL 718 |

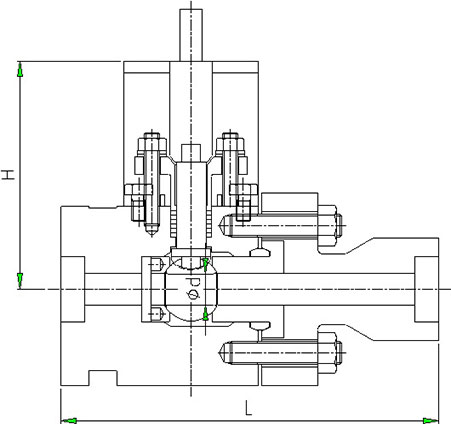

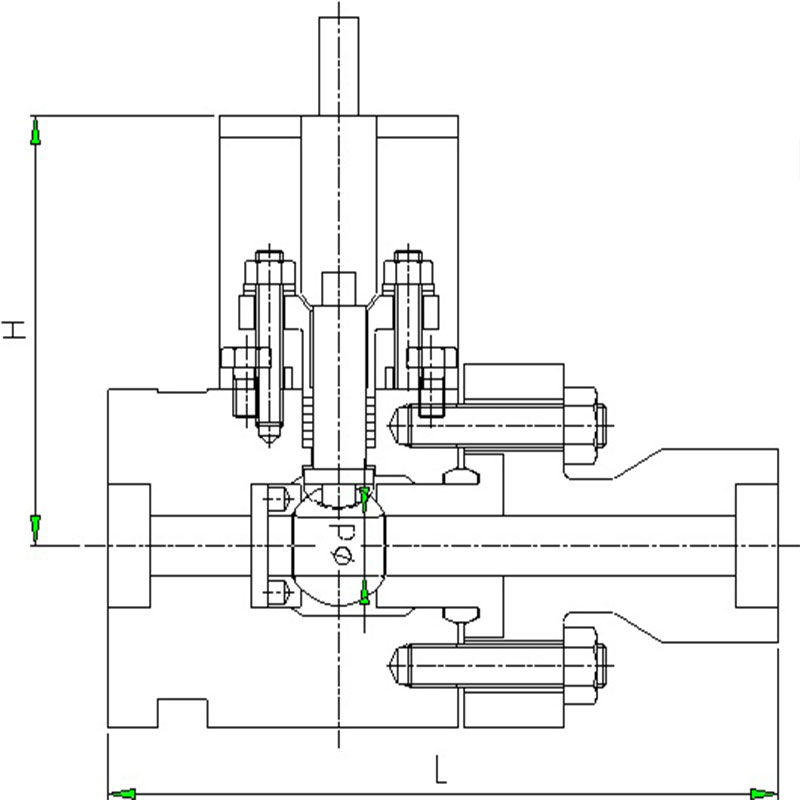

Dimension Table
Model NO : Class 600, 900, 1500, 2500
| SIZE | Unit | BORE Φd | L | H | |
|---|---|---|---|---|---|
| Vale | Bore | S.W | |||
| 1/2″ | 1/2″ | mm | 16 | 180 | 140 |
| 3/4″ | 3/4″ | mm | 16 | 180 | 140 |
| 1″ | 3/4″ | mm | 16 | 203 | 140 |
| 1″ | mm | 22 | 220 | 140 | |
| 1 1/4″ | 1″ | mm | 22 | 203 | 140 |
| 1 1/4″ | mm | 27 | 254 | 185 | |
| 1 1/2″ | 1 1/4″ | mm | 27 | 203 | 185 |
| 1 1/2″ | mm | 38 | 254 | 185 | |
| 2″ | 1 1/2″ | mm | 38 | 254 | 185 |
| 2″ | mm | 50 | 292 | 230 | |
| 2 1/2″ | 1 1/2″ | mm | 38 | 254 | 185 |
| 2 1/2″ | mm | 60 | 292 | 230 | |
| 3″ | 2″ | mm | 50 | 292 | 230 |
| 3″ | mm | 74 | 460 | 260 | |
Model NO : Class 4500
| SIZE | Unit | BORE Φd | L | H | |
|---|---|---|---|---|---|
| Vale | Bore | S.W | |||
| 1/2″ | 1/2″ | mm | 16 | 200 | 140 |
| 3/4″ | 1/2″ | mm | 16 | 200 | 140 |
| 1″ | 1/2″ | mm | 16 | 210 | 140 |
| 1 1/4″ | 1″ | mm | 22 | 210 | 140 |
| 1 1/2″ | 1″ | mm | 22 | 210 | 140 |
| 2″ | 1 1/2″ | mm | 38 | 210 | 185 |
| 2 1/2″ | 1 1/2″ | mm | 38 | 280 | 185 |
| 3″ | 2″ | mm | 50 | 280 | 230 |
