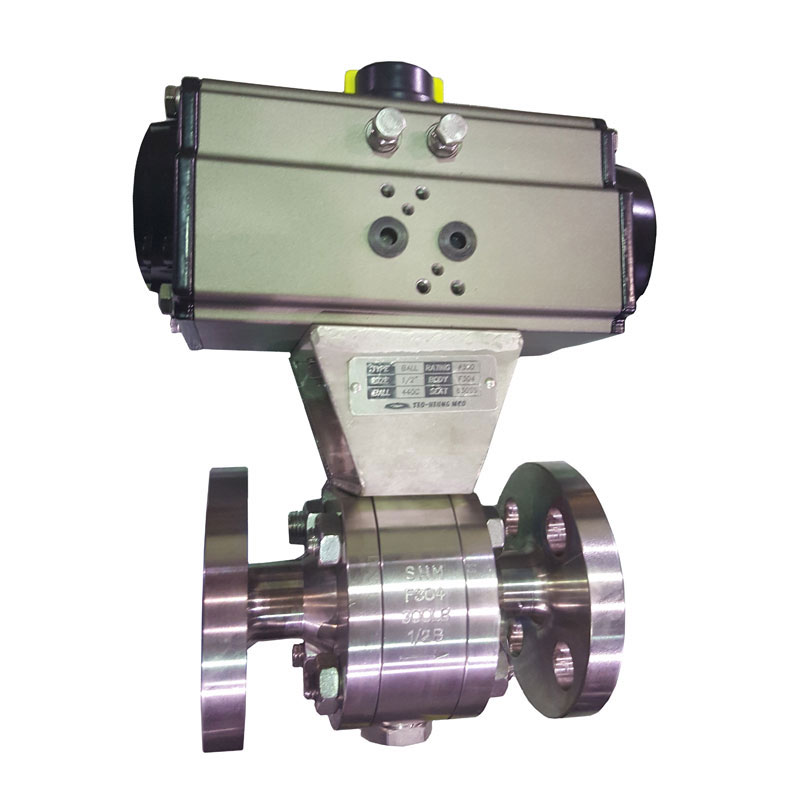

Details of products

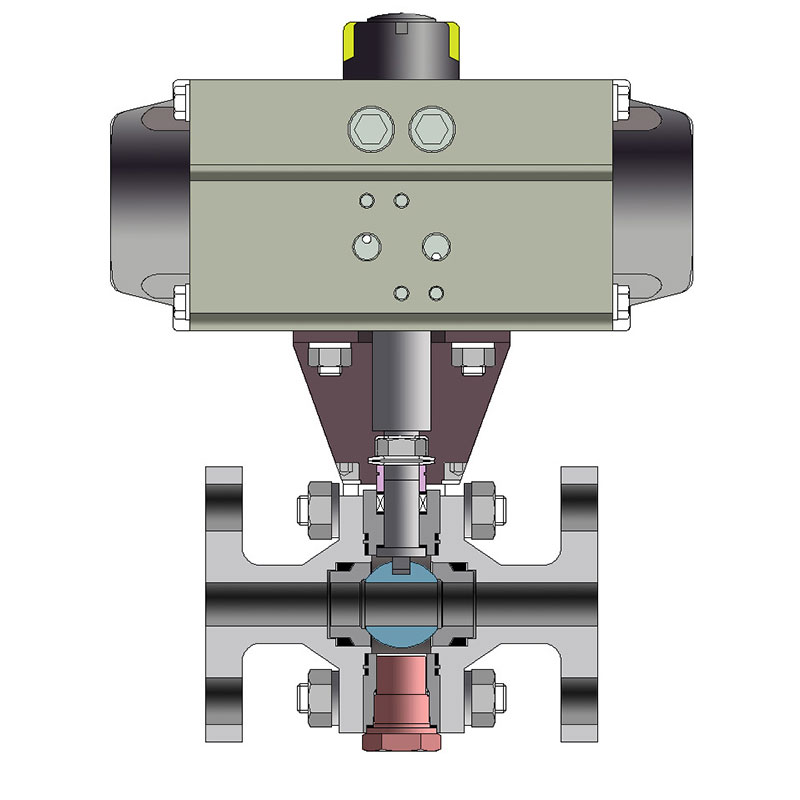

CONSTRUCTIONS
- End Connection : Socket-welded and Flanged
- Full Bore /Blow-out Proof Stem
- Anti-static Design
STANDARD MATERIALS
| PART NAME | MATERIALS |
|---|---|
| BODY | A105 or A182-F91 / F22 / F11 / F304 |
| BALL | 400SS + P.V.D |
| STEM | Alloy Steel + P.V.D |
| SEAT RING | A564-630 + P.V.D |
| SEAT SEAL | Graphite |
| SEAT ROAD RING | 400SS |
| GASKET | Graphite |
| PACKING | Graphite |

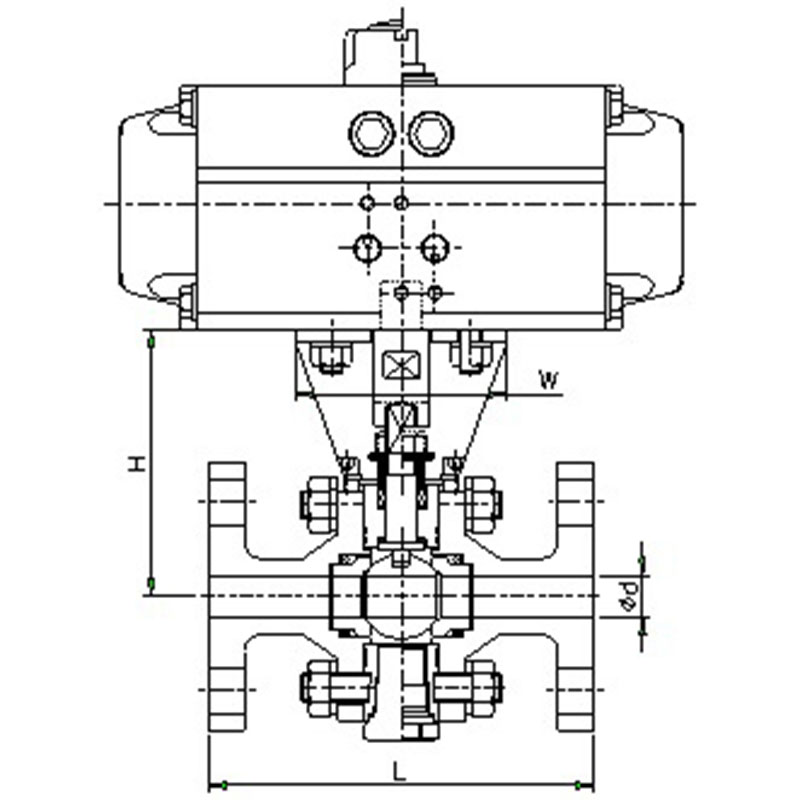

Dimension Table
Model NO : Class 150
| Valve Size | Unit | Φd | L | H | W |
|---|---|---|---|---|---|
| RF | |||||
| 1/2″ | mm | 15 | 108 | 95 | 75 |
| 3/4″ | mm | 20 | 117 | 110 | 75 |
| 1″ | mm | 25 | 127 | 124 | 88 |
| 1 1/4″ | mm | 32 | 191 | 130 | 88 |
| 1 1/2″ | mm | 38 | 165 | 146 | 102 |
| 2″ | mm | 50 | 178 | 185 | 102 |
Model NO : Class 300
| Valve Size | Unit | Φd | L | H | W |
|---|---|---|---|---|---|
| RF | |||||
| 1/2″ | mm | 15 | 140 | 95 | 75 |
| 3/4″ | mm | 20 | 152 | 110 | 75 |
| 1″ | mm | 25 | 165 | 124 | 88 |
| 1 1/4″ | mm | 32 | 191 | 130 | 88 |
| 1 1/2″ | mm | 38 | 191 | 146 | 102 |
| 2″ | mm | 50 | 216 | 185 | 102 |
