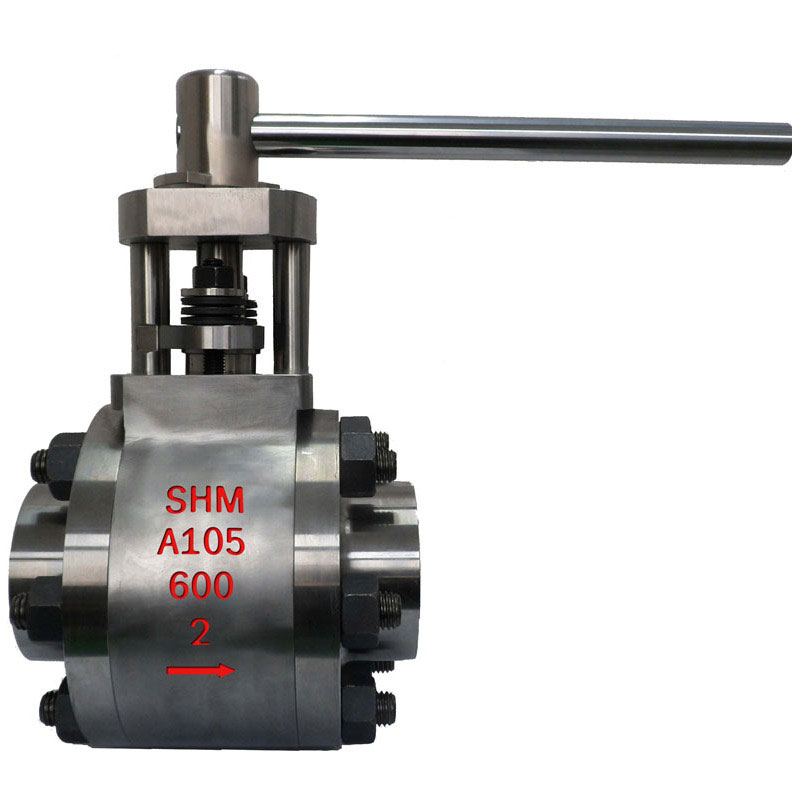

Details of products

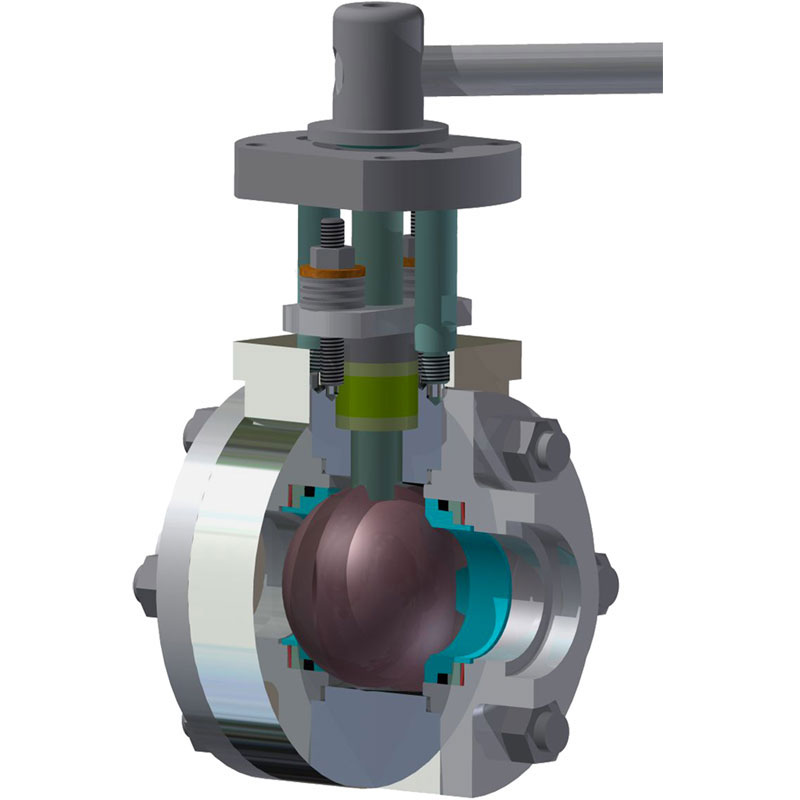

CONSTRUCTIONS
- End Connection : Socket-welded and Flanged
- Full Bore /Blow-out Proof Stem
- >Double Seal, Double Block & Bleed /Anti-static Design
- Live-loading System
- Fire Safety Construction : API 607
STANDARD MATERIALS
| PART NAME | MATERIALS |
|---|---|
| BODY | A105 or A182-F91 /F22 /F11 |
| BALL | 400SS + P.V.D |
| STEM | Alloy Steel + P.V.D |
| SEAT RING | 400SS + P.V.D |
| SEAT SEAL | Graphite |
| SEAT ROAD RING | 400SS |
| SEAT SPRING | Alloy Steel |
| GASKET | Graphite + 304SS |
| PACKING | Graphite |
| DISC SPRING | SK5M |

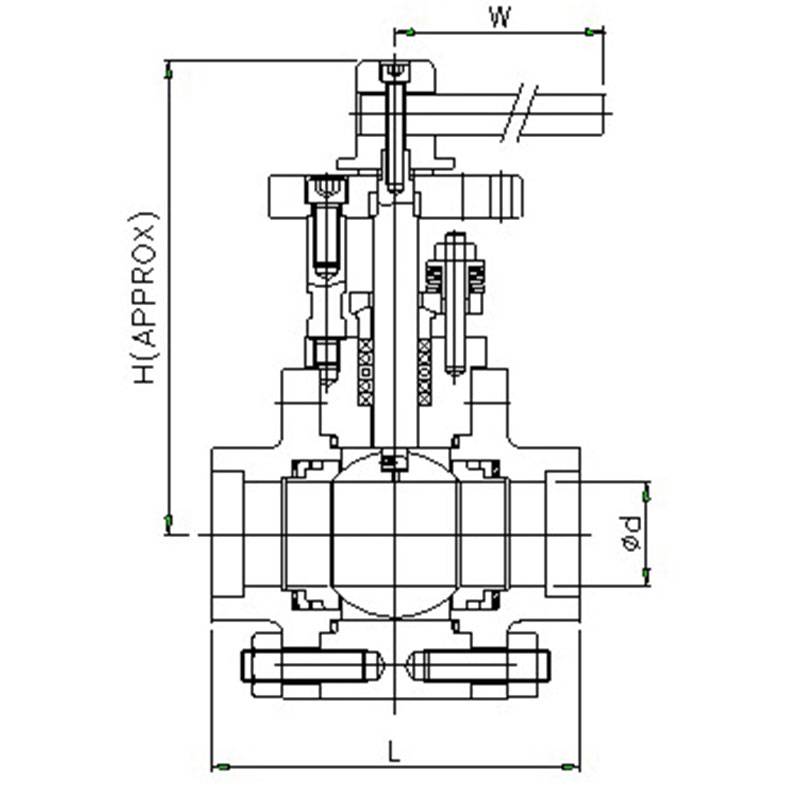

Dimension Table
Model NO : Class 600
| Valve Size | Unit | Φd | L | H | W | ||
|---|---|---|---|---|---|---|---|
| RF | WE | RJ | |||||
| 1/2″ | mm | 15 | 165 | 108 | 168 | 120 | 180 |
| 3/4″ | mm | 20 | 190 | 118 | 193 | 120 | 180 |
| 1″ | mm | 25 | 216 | 127 | 219 | 130 | 180 |
| 1 1/4″ | mm | 32 | 229 | 140 | 232 | 174 | 230 |
| 1 1/2″ | mm | 38 | 241 | 165 | 244 | 174 | 230 |
| 2″ | mm | 50 | 292 | 178 | 295 | 229 | 283 |
| 2 1/2″ | mm | 65 | 330 | 191 | 333 | 230 | 293 |
| 3″ | mm | 76 | 356 | 203 | 359 | 275 | 299 |
| 4″ | mm | 102 | 432 | 229 | 435 | 366 | 312 |
| 6″ | mm | 152 | 559 | 267 | 562 | 549 | 331 |
| 8″ | mm | 202 | 660 | 400 | 664 | 731 | 355 |
