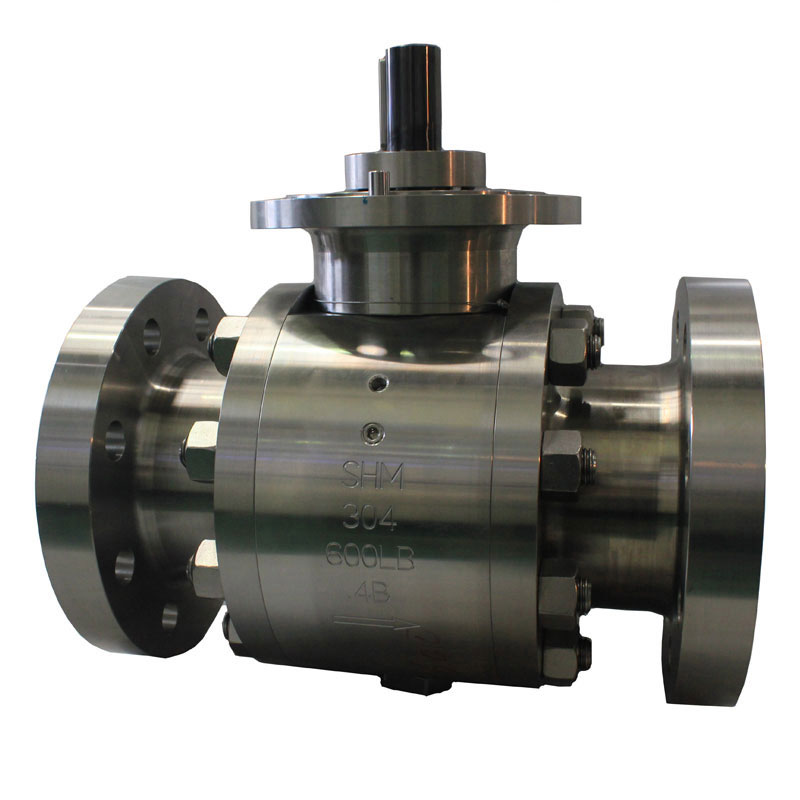

LT-T300

제품스펙안내
구분 내용
PRODUCT NAME Side Entry
MODEL NAME LT-T300
VALVE SIZE 1" ~ 8"
VALVE TYPE Bare Type (Except for Actuator)
APPLICABLE RATING ASME Class 150~2500
TEMPERATURE High 600 °C
CODE & STANDARD API, BS, ASME, ASTM

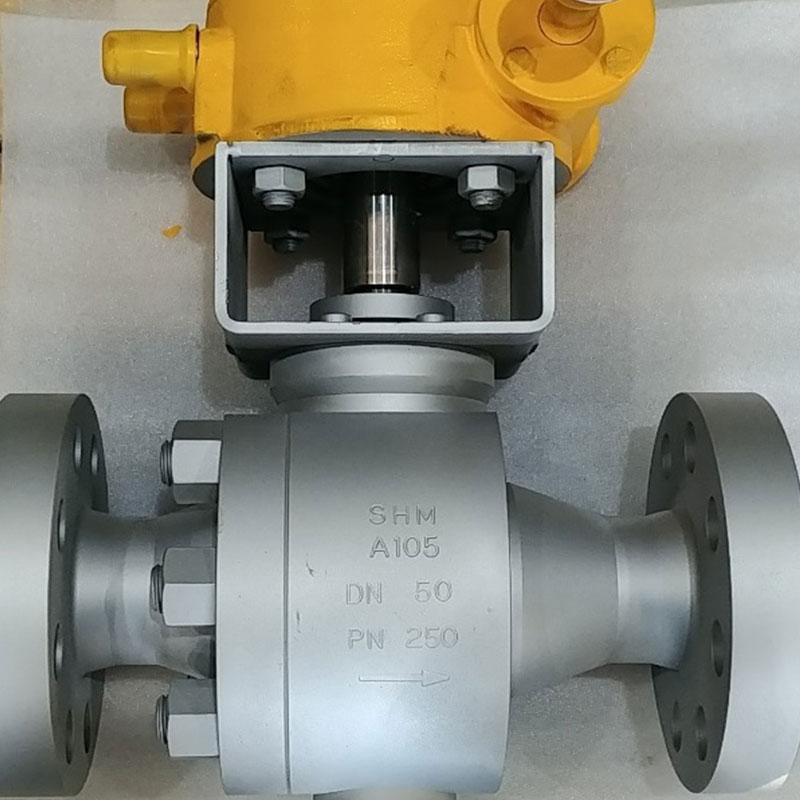

ACTUATOR MOV, AOV, HAND LEVER, WHEEL, GEAR
Please call for more product inquiries!+82-31-493-6677
Inquiry List

Details of products

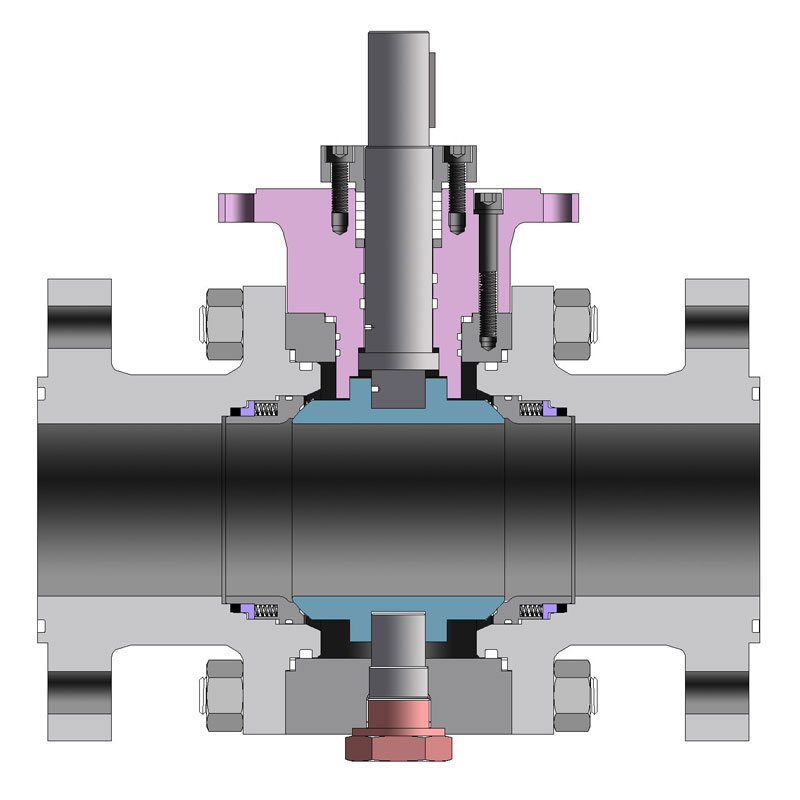

CONSTRUCTIONS

  • Two or Three-piece Type /Trunion Ball Type
  • End Connection: Socket-welded and Flanged
  • Full Bore /Blow-out Proof Stem
  • Double Seal, Double Block & Bleed /Anti-static Design
  • Pressure Relieving Seats/ Live-loading System

STANDARD MATERIALS

STANDARD MATERIALS안내
PART NAME MATERIALS
BODY A105 / A182-F91 / F22, F11, S.S.
BALL 400SS / 440C / 616SS + P.V.D
STEM Alloy Steel + P.V.D
SEAT RING 400SS / 440C / 616SS + P.V.D
SEAT SEAL Graphite
SEAT ROAD RING 400SS
SEAT SPRING Alloy Steel
GASKET Graphite + 304SS
PACKING Graphite
DISC SPRING SK5M

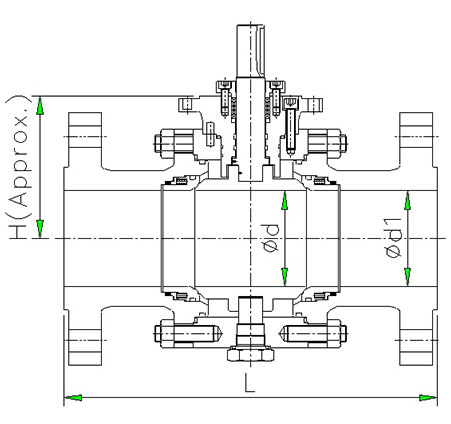

Dimension Table

Model NO : Class 150

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 127 254 - 74
1 1/2″ mm 38 38 165 305 - 92
2″ mm 50 50 178 325 191 94
3″ mm 76 76 203 282 216 137
4″ mm 102 102 229 305 241 160
5″ mm 125 125 356 381 359 187
6″ mm 152 152 394 457 406 227
8″ mm 202 202 457 521 470 340

Model NO : Class 300

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 165 254 - 74
1 1/2″ mm 38 38 190 305 - 92
2″ mm 50 50 216 325 232 94
3″ mm 76 76 282 282 298 137
4″ mm 102 102 305 305 321 160
5″ mm 125 125 381 381 - 187
6″ mm 152 152 403 403 419 227
8″ mm 202 202 502 521 518 340

Model NO : Class 600

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 216 254 - 76
1 1/2″ mm 38 38 241 305 - 92
2″ mm 50 50 296 325 295 104
3″ mm 76 76 356 356 359 137
4″ mm 102 102 432 432 435 190
5″ mm 125 125 508 508 - 187
6″ mm 152 152 559 559 562 227
8″ mm 202 202 660 660 664 350

Model NO : Class 900(Class 800)

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 254 254 - 96
1 1/2″ mm 38 38 305 305 - 120
2″ mm 50 50 368 368 371 145
3″ mm 76 76 381 381 384 178
4″ mm 102 102 457 457 460 230
5″ mm 125 125 559 559 - 240
6″ mm 152 152 610 610 613 275
8″ mm 202 202 737 737 740 350

Model NO : Class 1500

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 308 254 - 100
1 1/2″ mm 38 38 305 305 - 130
2″ mm 50 50 368 325 371 157
3″ mm 76 76 470 470 473 217
4″ mm 102 102 546 546 549 260
5″ mm 125 125 673 673 - 280
6″ mm 146 152 705 705 711 325
8″ mm 194 202 832 832 841 370

Model NO : Class 2500

STANDARD MATERIALS안내
Valve Size Unit Φd Φd1 L H
RF WE RTJ
1″ mm 25 25 308 308 - 120
1 1/2″ mm 38 38 384 384 - 160
2″ mm 44 44 451 451 454 191
3″ mm 64 64 578 578 584 242
4″ mm 89 89 673 673 683 285
5″ mm 110 110 794 794 - 350
6″ mm 133 133 914 914 927711 370
